The KHM-560P CNC four-side door sizing machine is a heavy-duty solution designed for precise sizing of door leaves from four sides to the required dimensions in through mode. The machine is equipped with four sawing units for four-side processing.

The KHM-560P features one-click data import, simplifying the setup of processing data. With a maximum working size of 2500 mm, the machine is suitable for mass production of doors.

The machine can be integrated into an automatic production line and is used by large door manufacturing enterprises for the serial production of doors.

Distinctive features

• -Adopts PLC control, handheld scanner. One-click data imported and proceed (option: fix auto scanner)
• -Heavy-Duty frame with servo working table and through feed infeed and outfeed
• -Four sets of sawing units (2 sets of longitudinal saw + 2 sets of horizontal saw）Machine adopts servo panetary reduction, linear guide and grinding rack
• -Scoring saw adjust based on panel thickness, no need manual adjustment
• -Vacuum sucker adopts servo positioning, it can adjust the best adsorption place according to panel size
• -With automatic wastage recycling system, reduce workload and improve safety

Design advantages

Control system

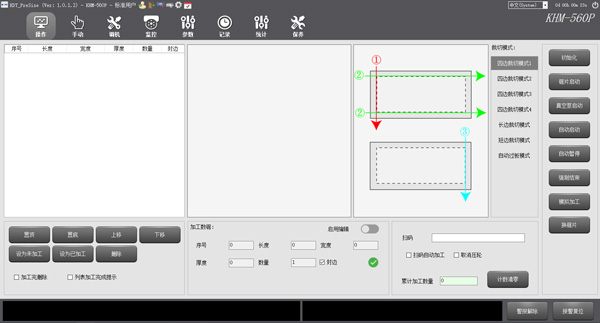

PC control, support multiple sawing modes, easy to
operate.

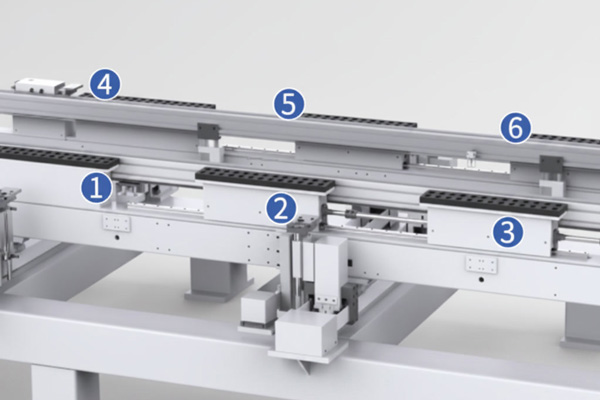

Vacuum sucker working table
Adjust sawing according to panel size, prevent destorying the working
table

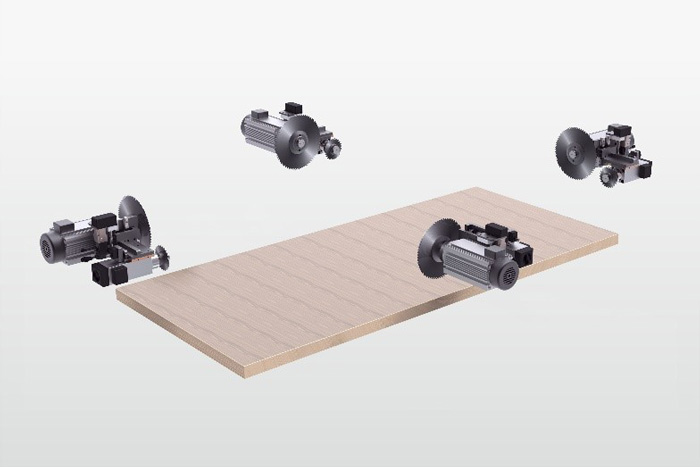

Independent saw units
Four independent saw units with scoring saw work in sync for maximum productivity.

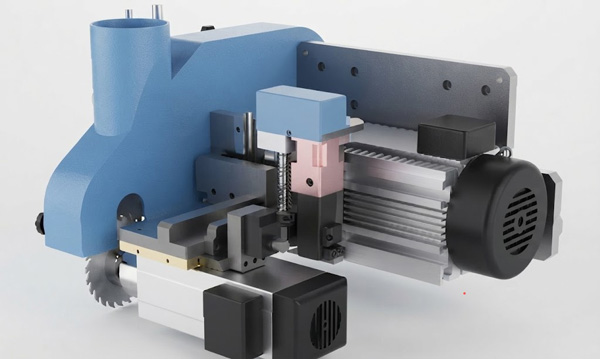

Saw Unit
The productive saw unit has its own motors for the main (power 7.5 kW, blade size 300x50 mm) and scoring (power 1.5 kW, blade size 120x30 mm) saws . The scoring saw is servo controlled. Also the knot has an exit under aspiration of 140 mm.

Barcode scanner(Optional)

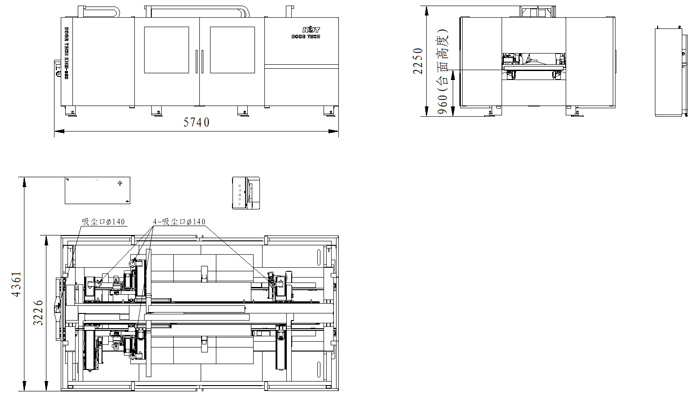

KHM-560P CNC Four-Side Door Sizing Machine - Plane Layout

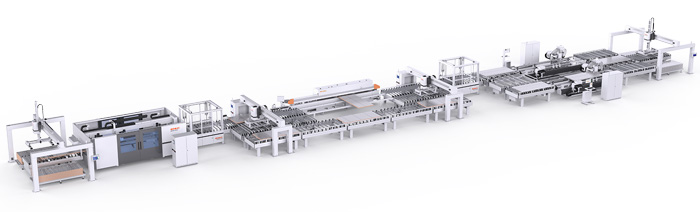

Plane Layout As a Part of Production Line
